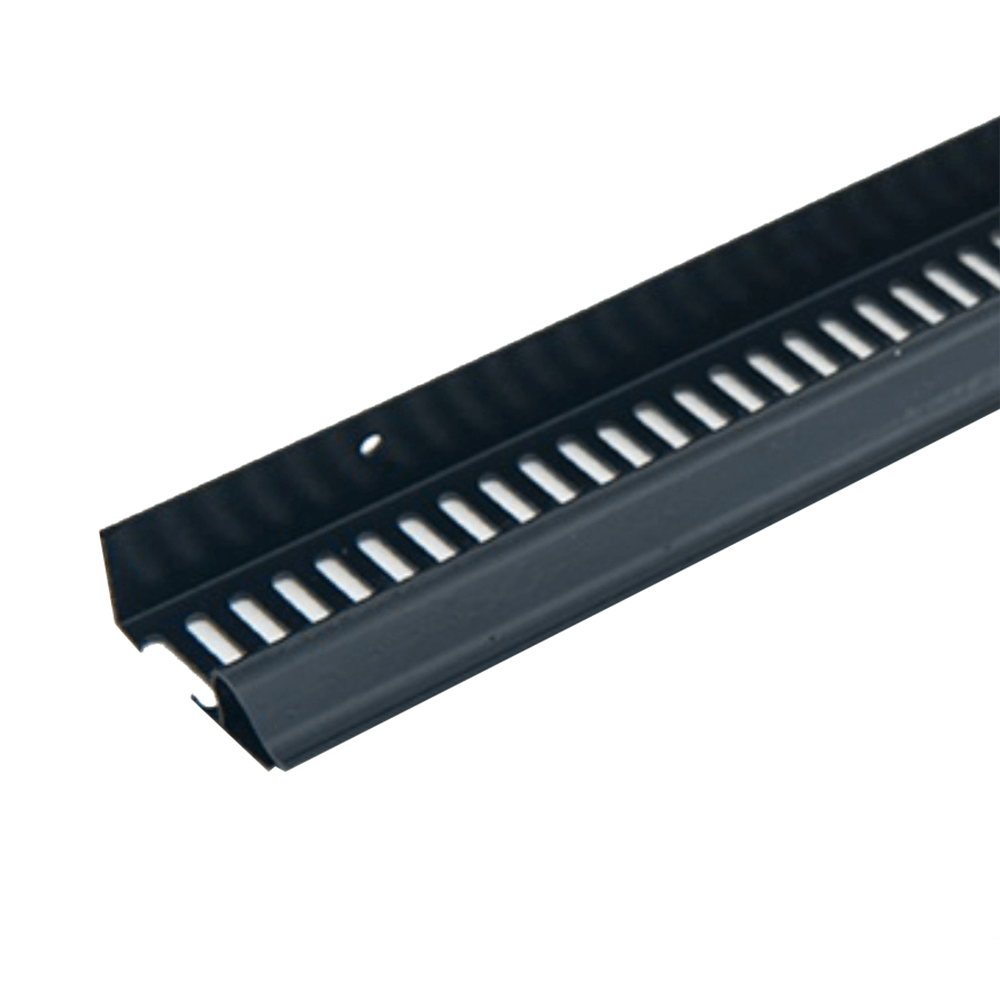

10mm Continuous Soffit Vent Strip - Black 2.4m Image

10mm Continuous Soffit Vent Strip - Black 2.4m

SKU: G800BL

Efficient Roof Ventilation: Provides continuous airflow to prevent condensation and maintain roof health.
Insect-Resistant Design: Slot spacing blocks large insects while allowing unimpeded air circulation.
Fits Multiple Soffit Types: Adjustable mouth accepts soffit boards from 4mm to 12mm thick.
Easy Installation: Typically fixed to the back of the fascia with the soffit slotted in and secured to the wall.
Durable & Low Maintenance: Designed to resist blockage from debris, paint, or water droplets.

Description

10mm Continuous Soffit Vent Strip – Black (2.4m)

G800 Continuous Soffit Ventilator – Discreet, Effective Roof Ventilation

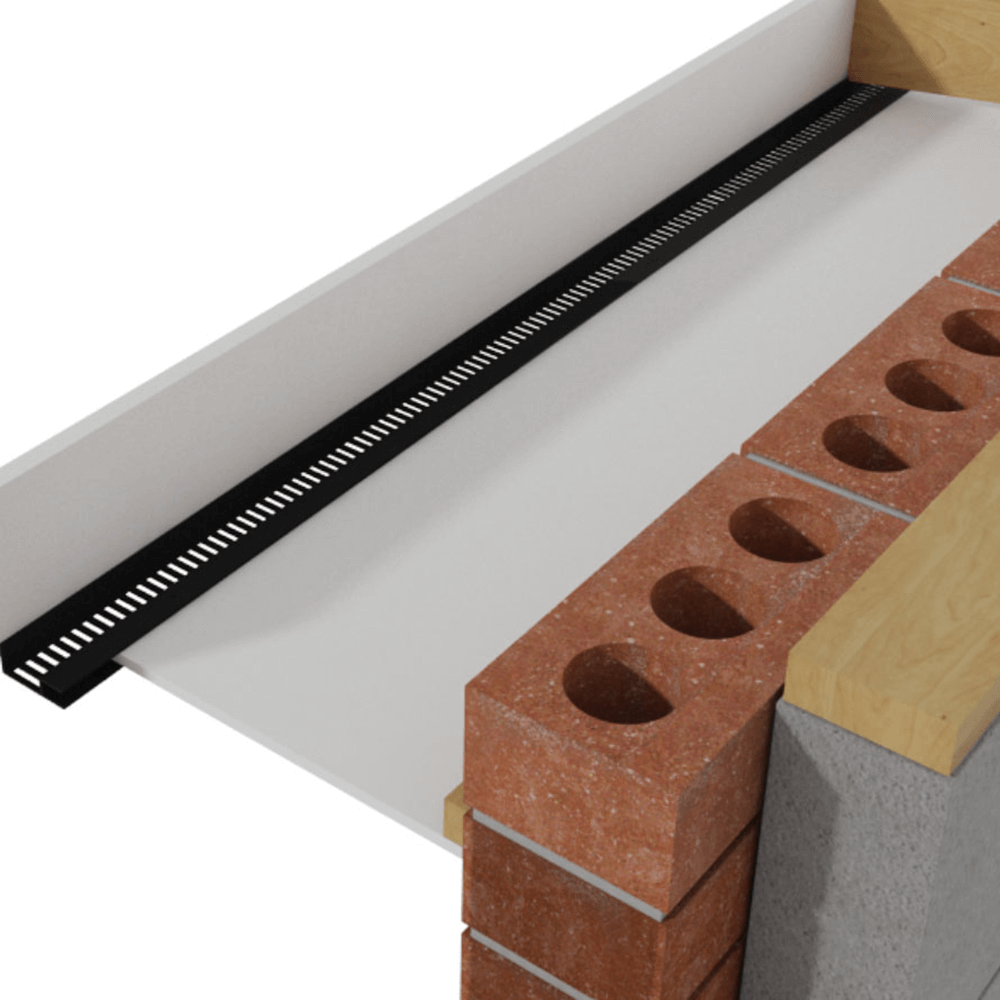

The G800 Continuous Soffit Ventilator is a practical solution for achieving consistent airflow into roof spaces where a traditional soffit board is used. Designed to fit discreetly behind the fascia board, it allows fresh air to circulate while keeping large insects out.

🛠 Product Details:

Length: 2.4m
Ventilation: 10,000mm²/m airflow
Soffit Compatibility: Accepts soffit thicknesses from 4mm to 12mm
Material: Durable uPVC
Colour: Black
Installation: Adjustable mouth for easy fitting

✅ Key Features:

Effective Ventilation – Maintains a healthy airflow to prevent condensation and roof void damage
Insect Protection – Evenly spaced slots prevent large insects from entering
Discreet Installation – Fits neatly to the back of the fascia board
Adjustable Fit – Suitable for various soffit thicknesses (4mm–12mm)
Durable Design – Resistant to weather, debris, paint, and water droplet blockage

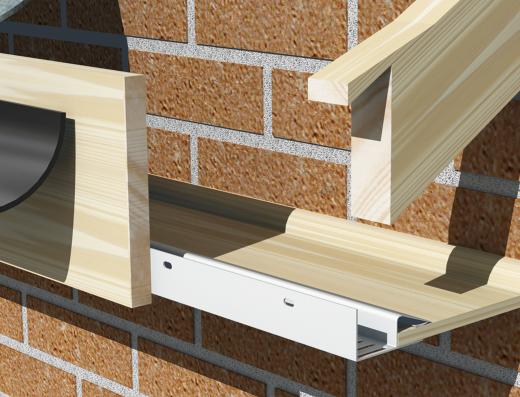

📏 Installation Method:

Fix the Vent – Securely screw the G800 to the back of the fascia board using pre-formed fixing holes.
Insert Soffit Board – Push the soffit board into the adjustable mouth of the vent.
Secure to Wall – Fix the soffit board back to the wall as normal.

The G800 Continuous Soffit Vent Strip is ideal for both new builds and refurbishments, offering a low-maintenance, long-term solution for effective roof ventilation. For a complete system, pair with other products from the Manthorpe Roof Ventilation Range.

Technical Information

Delivery: 1-2 Working Days
Lead Time: In Stock
Size: 26 x 48 x 2440mm
Weight: 0.52Kg
Brand Name: Manthorpe
Colour: Black
Material: PVC-u

Delivery & Returns

Delivery

The despatch timings we publish are estimates and due consideration needs to be made when making purchases with tight deadlines and as such we shall not be liable for any losses, costs, damages, charges, or expenses caused by any delay for delivery of the goods.

Returns Policy For Brissco Online

We appreciate that there may be occasions you may wish to return items. To help you with this process please see our returns policy below.

Returning an item – Damaged

In the event you receive damaged goods we will arrange a replacement item for you. However, it is your responsibility to notify us within 72 hours of receipt that an item has been received damaged (please see risk below).

Returning an item – Risk

On receipt of the delivery you, the customer, are responsible for those goods and any loss or damage to the goods shall be at your own risk.

Returning an item – Incorrect

If you receive incorrect goods it is your responsibility to notify us within 72 hours of receipt at which point we will make the necessary arrangements.

Delivery shortages

Firstly, our carrier delivers parcels/packages. Any shortages of them must be reported to the driver on receipt. Secondly, shortages of contents of the parcel(s)/package(s) against the enclosed Brissco advice note must be made within 72 hours.

PDFs

FAQs

1. What is the purpose of the 10mm Continuous Soffit Vent Strip?

It provides continuous roof ventilation for properties with traditional soffit boards, helping to reduce condensation and improve airflow in the roof space.

2. What colours is the vent strip available in?

It is available in white, brown, and black to match or complement different fascia and soffit finishes.

3. How long is each vent strip?

Each strip measures 2.4 metres in length, allowing for quick coverage of long runs along the roofline.

4. How is the vent typically installed?

It is usually fixed to the back of the fascia board. The soffit board is then slotted into the adjustable mouth of the vent and fixed back to the wall.

5. What soffit thickness does it accept?

The vent accommodates soffit boards between 4mm and 12mm thick.

6. How does the vent prevent insect entry?

It features evenly spaced slots that are specifically sized to keep out large insects while allowing ample airflow.

7. Will the slots get blocked by debris or paint?

No, the slot design ensures they are wide enough to avoid being blocked by debris, paint, or water droplets.

8. Can this vent be used with other ventilation products?

Yes, it can be used in conjunction with other Manthorpe ventilation products to create a complete roof ventilation system.

9. Is the vent secured with nails or screws?

It should be securely screwed into place through the fixing holes provided before fitting the soffit board.

10. What airflow does the vent provide?

It offers a continuous 10mm airflow gap, meeting building regulation requirements for eaves ventilation.
