170mm Superdeep External Black Stop End 170mm Superdeep External Black Stop End 170mm Superdeep External Black Stop End

170mm Superdeep External Black Stop End

170mm Superdeep External Black Stop End image
170mm Superdeep External Black Stop End

170mm Superdeep External Black Stop End

SKU:KCE1BL
£6.17 £5.14 (EXCL VAT)

  • Ultra tough, think-wall system
  • 170mm high capacity commercial system
  • White core reduces heat absorbtion
  • Uses 100mm or 110 downpipe
  • Internal and external verions of angles
  • Fix fascia brackets at maximum 600mm cetres
call us

Available for Delivery & Collection

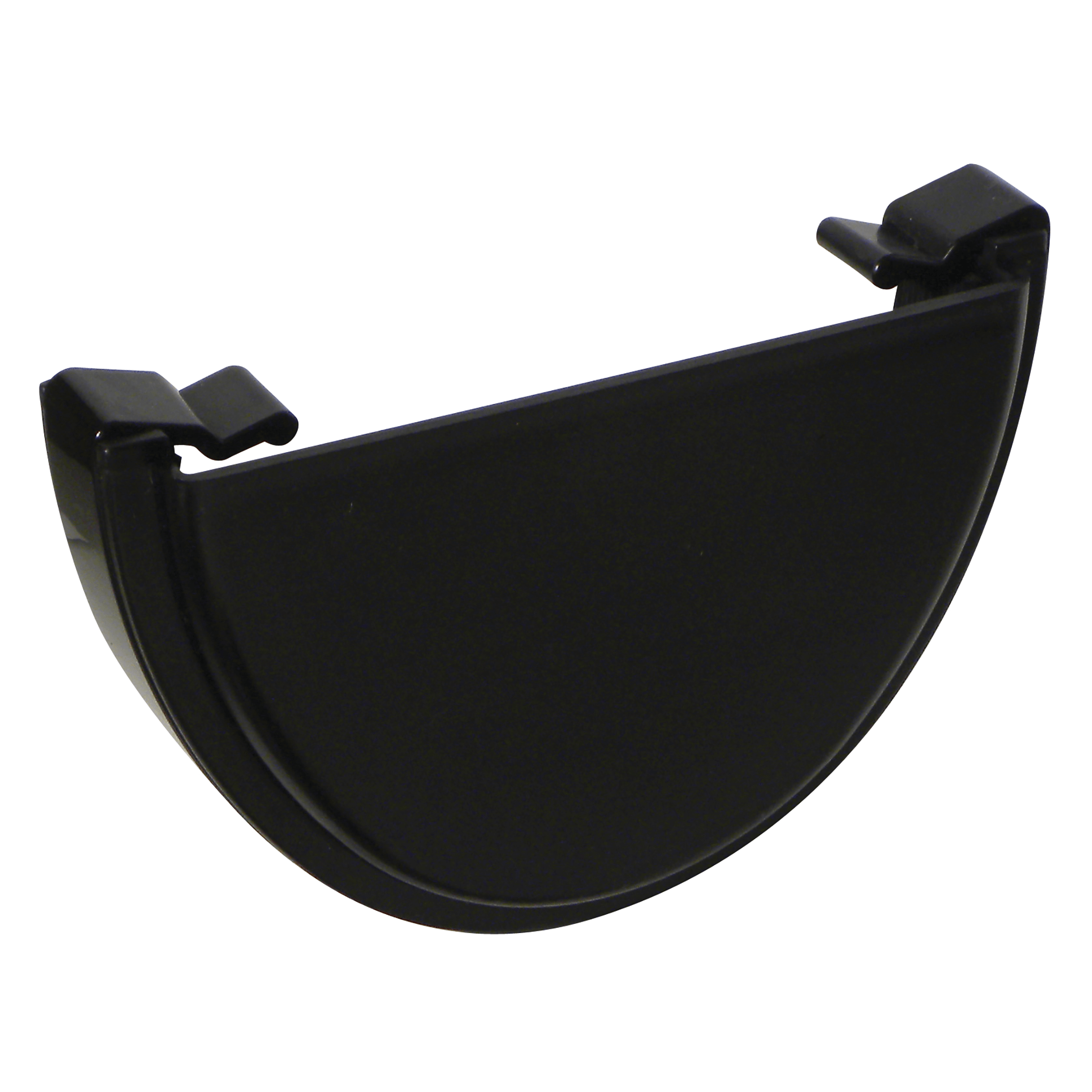

170mm Superdeep Commercial External Black Gutter Stop End

Our black 170mm super deep external stopend is part of Kayflow's extra high capacity guttering range. The extra high capacity range is able to cope with extremely high flow rates of water, and offers a slightly oval profile. The extra high capacity gutter system has a prefitted seal retaining clip system for a fast user friendly installation.

Weight: 0.23 Kg
Delivery: Lead time 3-5 working days
Brand Name: Kayflow
Colour: Black
Material: PVC-U
Guarantee: 10 Years Manufacturers
Delivery
The despatch timings we publish are estimates and due consideration needs to be made when making purchases with tight deadlines and as such we shall not be liable for any losses, costs, damages, charges, or expenses caused by any delay for delivery of the goods.
Returns Policy For Brissco Online
We appreciate that there may be occasions you may wish to return items. To help you with this process please see our returns policy below.
Returning an item – Damaged
In the event you receive damaged goods we will arrange a replacement item for you. However, it is your responsibility to notify us within 72 hours of receipt that an item has been received damaged (please see risk below).
Returning an item – Risk
On receipt of the delivery you, the customer, are responsible for those goods and any loss or damage to the goods shall be at your own risk.
Returning an item – Incorrect
If you receive incorrect goods it is your responsibility to notify us within 72 hours of receipt at which point we will make the necessary arrangements.
Delivery shortages
Firstly, our carrier delivers parcels/packages. Any shortages of them must be reported to the driver on receipt. Secondly, shortages of contents of the parcel(s)/package(s) against the enclosed Brissco advice note must be made within 72 hours.
There are no PDFs available for this product.
How far apart should fascia brackets be fixed?
The spacings for each system are as follows:
  • Half Round, Square, Deepflow and Mini Gutters - Brackets at 1M centres
  • Ogee Gutters - Brackets at 800mm centres
  • Superdeep Industrial Gutters - Brackets at 600mm centres
Brackets should be fitted using two 5mm x 25mm screws (1 x 10). Screws can be either round head or countersunk.
Do I need a fascia bracket on either side of a fitting?
The only fittings that need to be supported by a fascia bracket are gutter angles and stop ends. These should be supported by a bracket positioned within 150mm (6) of the fitting.
Do I need to use silicone sealant on PVC gutter joints?
No, the joint is sealed by the small rubber strip that is contained within all gutter unions, outlets, angles and stop ends. As the gutter is clipped in place, the downward pressure applied by the fascia brackets forces the gutter down on to the seal, compressing it to create a watertight joint.
How does the downpipe connect to the guttering?
As with all of our Gutter systems, the downpipe pushes directly onto the bottom of the Running Outlet or Stopend Outlet - no other connector is required. No adhesive or sealant is needed to make the joint but we recommend that you should always support any downpipe with a pipe clip within 200mm of the outlet.
How far into the gutter should roof tiles project?
The bottom tile or slate of the roof covering should project at least half way into the gutter - the ideal distance is between half way and two thirds of the way over. The reason for this is that whenever rain runs down any type of roof, when it gets to the lower edge it clings to the tile or slate by capilliary action - this means that the water actually runs around the bottom edge and slightlly back up the rear of the tile before gravity allows it to drop into the gutter. If the bottom course of tiles or slates only just projects into the gutter there is a real danger that rainwater will fall behind the gutter, leading to damp roof timbers or brickwork.
