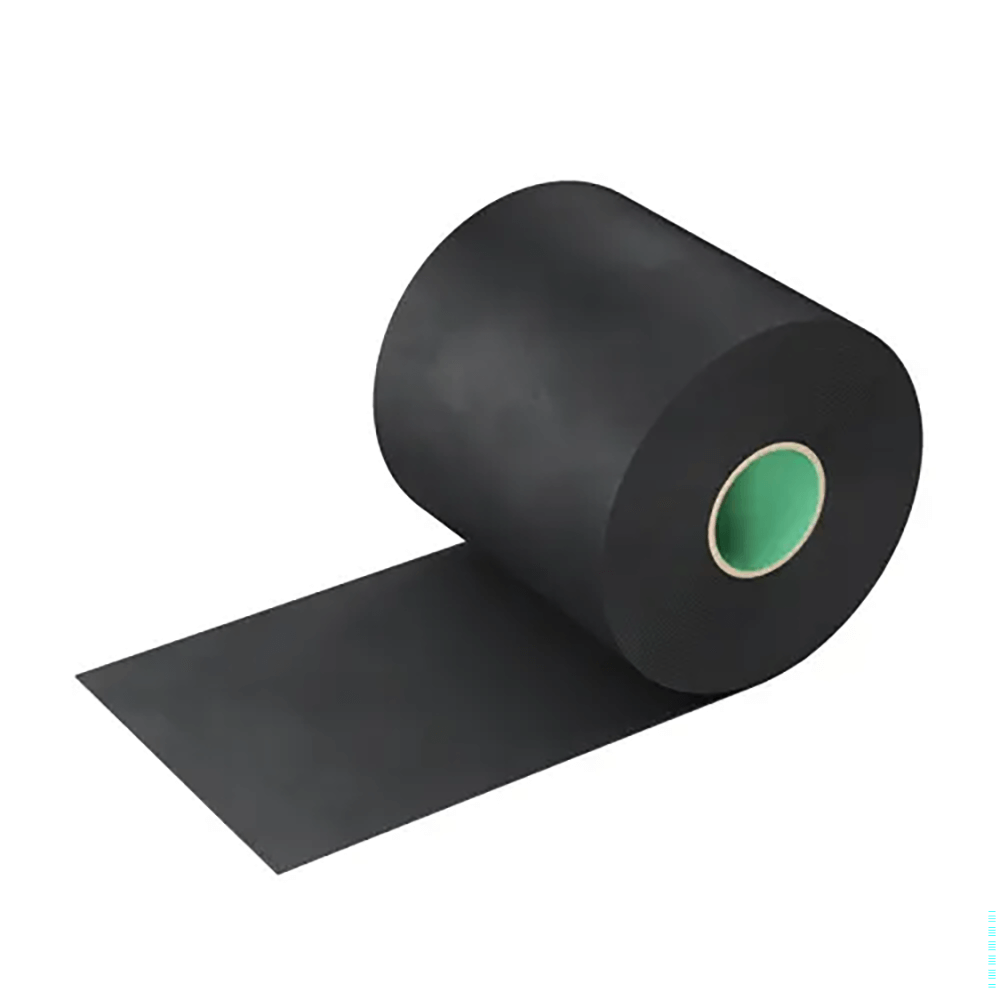

60mm EPDM Tape For James Hardie Plank 20m Image

60mm EPDM Tape For James Hardie Plank 20m

SKU: 500860

UV-Resistant Protection: Designed to cover vertical joints between planks and around trims, windows, and doors, helping improve weather resistance.
Made for Hardie® Cladding Systems: Ideal for use with fibre cement plank installations to create a professional, durable finish.
Strong EPDM Material: Flexible, long-lasting rubber tape that performs reliably in outdoor conditions.
Mechanical Fix Installation: Not self-adhesive – installs securely using staples or pins onto timber battens.
Practical Roll Size: Supplied in 20m length, 60mm width, and 0.75mm thickness for consistent joint coverage.

Description

60mm EPDM Tape for Hardie® Plank – 20m

The 60mm EPDM Tape for Hardie® Plank is a durable, UV-resistant joint protection tape designed to shield timber subframes from moisture penetration behind fibre cement cladding systems. Installed behind vertical joints and connection points, this high-performance EPDM membrane helps improve long-term durability by preventing water ingress into battens and structural timber.

Specifically suited for use with Hardie® Plank cladding, the tape provides reliable protection at plank joints and around trims, windows, and doors—helping maintain a weather-resistant façade system.

Key Features

UV-resistant EPDM joint tape for external cladding systems
Protects timber battens from permanent moisture exposure
Ideal for covering vertical joints between planks
Suitable for use between cladding and trims, windows, or doors
Flexible and durable for long-term outdoor performance
NOT self-adhesive – fixed using staples or pins

Specifications

Width: 60mm
Length: 20m roll
Thickness: 0.7mm
Material: EPDM rubber
Installation: Mechanical fixing (staples or pins)

Applications

Hardie® Plank fibre cement cladding systems
Timber subframe protection
Vertical cladding joints
Window, door, and trim junction detailing

Installation Guidance

Fix directly to timber battens using staples or pins
Position behind vertical joints and connection points
Ensure continuous coverage to maintain moisture protection

Essential Protection Behind the Cladding

The 60mm EPDM Tape for Hardie® Plank is a simple but essential component for achieving a long-lasting, professional cladding installation—helping protect timber substructures while improving overall weather resistance and durability.

Technical Information

Delivery: 1-2 Working Days
Lead Time: Into Order 2-3 Days
Size: 60mm x 20m
Colour: Black
Brand Name: James Hardie

Delivery & Returns

Delivery

The despatch timings we publish are estimates and due consideration needs to be made when making purchases with tight deadlines and as such we shall not be liable for any losses, costs, damages, charges, or expenses caused by any delay for delivery of the goods.

Returns Policy For Brissco Online

We appreciate that there may be occasions you may wish to return items. To help you with this process please see our returns policy below.

Returning an item – Damaged

In the event you receive damaged goods we will arrange a replacement item for you. However, it is your responsibility to notify us within 72 hours of receipt that an item has been received damaged (please see risk below).

Returning an item – Risk

On receipt of the delivery you, the customer, are responsible for those goods and any loss or damage to the goods shall be at your own risk.

Returning an item – Incorrect

If you receive incorrect goods it is your responsibility to notify us within 72 hours of receipt at which point we will make the necessary arrangements.

Delivery shortages

Firstly, our carrier delivers parcels/packages. Any shortages of them must be reported to the driver on receipt. Secondly, shortages of contents of the parcel(s)/package(s) against the enclosed Brissco advice note must be made within 72 hours.

PDFs

FAQs

1. What is 60mm EPDM Tape used for?

EPDM tape is designed to protect timber subframes from permanent moisture penetration by covering vertical joints between Hardie® planks, trims, windows, and doors.

2. Is the tape self-adhesive?

No, this EPDM tape is not self-adhesive. It must be fixed to timber battens using staples or pins.

3. Where should EPDM tape be installed?

It should be applied behind vertical joints between cladding boards and around openings such as windows, doors, and trims to improve weather protection.

4. Is the tape UV resistant?

Yes, the EPDM material is UV-resistant, helping maintain durability when exposed to sunlight during installation and long-term use.

5. What size is the tape?

The tape is 60mm wide, approximately 0.7mm thick, and supplied in a 20m roll.

6. Why is EPDM tape important for Hardie Plank installations?

It acts as a protective barrier that prevents moisture reaching the timber battens, helping extend the lifespan of the subframe.

7. Can the tape be used with other cladding systems?

While designed for Hardie® Plank systems, it can also be used where a durable moisture barrier is required behind vertical joints on timber structures.

8. How do you install EPDM tape correctly?

Fix the tape vertically over the timber battens using staples or pins before installing the cladding boards, ensuring full coverage of the joint area.

9. Is EPDM tape suitable for external use?

Yes, it is specifically designed for external cladding applications thanks to its weather and UV resistance.

10. Does EPDM tape improve the overall durability of the cladding system?

Yes, by reducing moisture penetration into the timber subframe, it helps prevent rot, improves ventilation performance, and supports a longer-lasting installation.
