Ankorglaze 25mm Condensation Control 2.1m

Fitting Instructions:

Set top of Ring Beam level with top of Rafter.

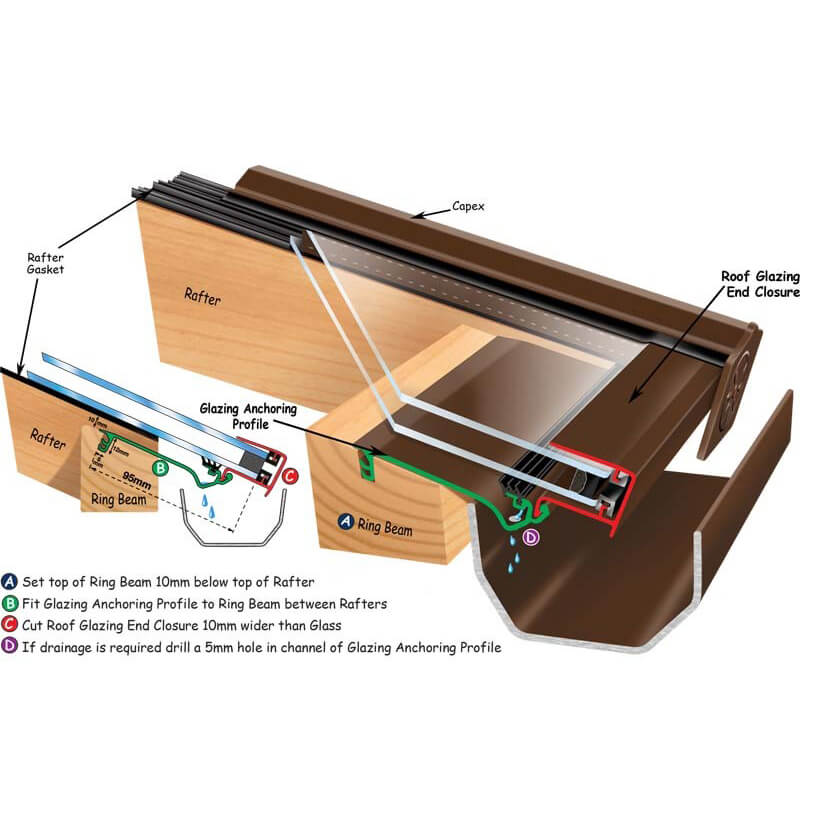

Make a groove 5mm wide x 12mm deep in Ring Beam as per diagram below. (Some Hardwoods may require a wider groove up to 6mm. Please Test)

Fit the Glazing Anchoring Profile into the groove along the Ring Beam between Rafters. Insert the Rubber Gasket.

NOTE: Glazing Anchoring Profile must only be fitted to Ring Beam between Rafters allowing Rafter Gasket to run into gutter.

Cut the Roof Glazing End Closure to the same width as the Double Glazed Unit. Fit to the gutter end of Glazing Material.

Position the Glazed Unit onto the Roof allowing the Roof Glazing End Closure to enter the Retaining Groove in the Glazing Anchoring Profile.

Ease the Glazed Unit down the Roof ensuring it is correctly locked in place. See diagram.

Additional Information

Weight: 2.25 Kg

Delivery: Lead time 2-3 working days

Brand Name: Exitex

Colour: Brown Ral8040

Material: Aluminium

Guarantee: 10 Years Manufacturers
