Exitex Aluminium Cresfinex Mk4 Ridge 3m White RAL9010 Exitex Aluminium Cresfinex Mk4 Ridge 3m White RAL9010 Exitex Aluminium Cresfinex Mk4 Ridge 3m White RAL9010

Exitex Aluminium Cresfinex Mk4 Ridge 3m White RAL9010

Exitex Aluminium Cresfinex Mk4 Ridge 3m White RAL9010 image
Exitex Aluminium Cresfinex Mk4 Ridge 3m White RAL9010

Exitex Aluminium Cresfinex Mk4 Ridge 3m White RAL9010

SKU:CFX-MK4-30W
£211.03 £175.86 (EXCL VAT)

  • Robust aluminium sections
  • High quality supple EPDM Gasket in-situ

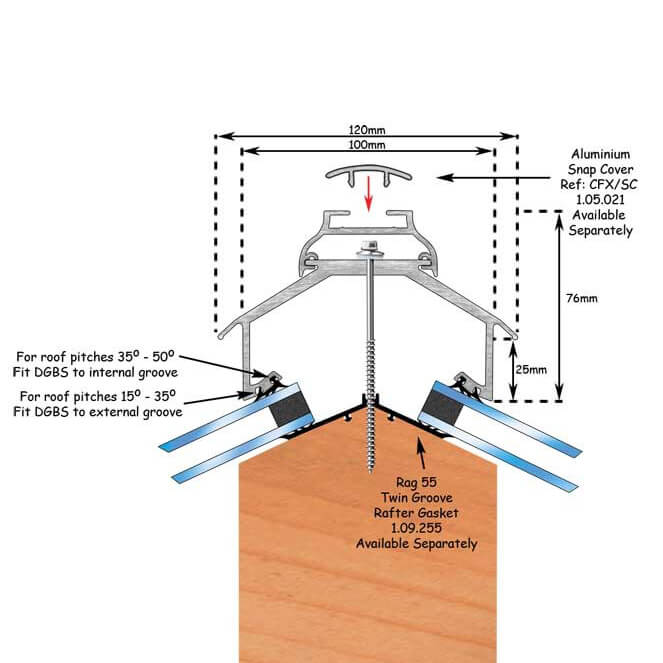

  • For roof pitches 35-50 degrees fit DGBS to the internal groove
  • For roof pitches 15-35 degrees fit DGBS to the external groove
call us

Available for Delivery & Collection


Exitex Aluminium Cresfinex Mk4 Ridge 3m White

Robust aluminium sections. High quality supple EPDM Gasket in-situ. For roof pitches 35-50 degrees fit DGBS to the internal groove For roof pitches 15-35 degrees fit DGBS to the external groove.
Fitting Instructions:
Position and secure glazing material to the roof.
Cut MK4 Ridge and seals to required length.
Drill 6mm fixing holes.
The first and the last holes to be a maximum of 100mm from the ends and then at 300mm centres.
Attach Radius or Gable endcap and Wall endcap.
Position the MK4 Ridge profile on the glazing material. If fixing into hardwood, plastic or steel, drill a 3mm pilot hole. Before tightening down ridge, position Cresfinex bridgings with the flat bridging tongue under the Cresfinex gaskets.
The apex at the radius end where the rafters intersect must be flashed over before fitting Cresfinex. With gaskets and bridgings correctly positioned screw the Cresfinex extrusion home. Slide on top part of MK4 Ridge.
Insert crests and finial if required.

Weight: 9.70 Kg
Delivery: Lead time 2-3 working days
Brand Name: Exitex
Colour: White RAL9010
Material: Aluminium
Guarantee: 10 Years Manufacturers

Delivery
The despatch timings we publish are estimates and due consideration needs to be made when making purchases with tight deadlines and as such we shall not be liable for any losses, costs, damages, charges, or expenses caused by any delay for delivery of the goods.
Returns Policy For Brissco Online - We appreciate that there may be occasions you may wish to return items. To help you with this process please see our returns policy below.
Returning an item – Damaged - In the event you receive damaged goods we will arrange a replacement item for you. However, it is your responsibility to notify us within 72 hours of receipt that an item has been received damaged (please see risk below).
Returning an item – Risk - On receipt of the delivery you, the customer, are responsible for those goods and any loss or damage to the goods shall be at your own risk.
Returning an item – Incorrect - If you receive incorrect goods it is your responsibility to notify us within 72 hours of receipt at which point we will make the necessary arrangements.
Delivery shortages - Firstly, our carrier delivers parcels/packages. Any shortages of them must be reported to the driver on receipt. Secondly, shortages of contents of the parcel(s)/package(s) against the enclosed Brissco advice note must be made within 72 hours.

For more information visit our Deliveries & Returns policy page





No FAQs for this product as this time.

Related Products

Cresfinex Mk4 Gable Endcap Aluminium White

Cresfinex Mk4 Gable Endcap Aluminium White

£116.40 (Incl VAT)

View Details

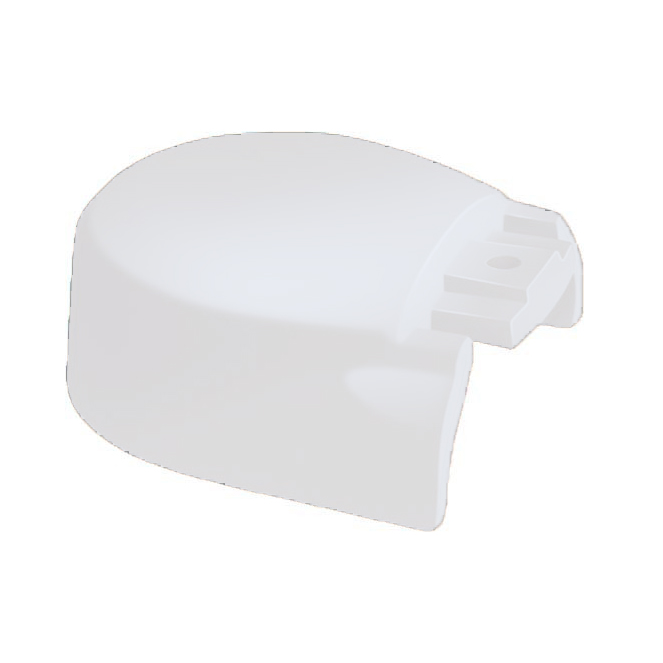

Cresfinex MK2/MK4 Cap Endcap Aluminium White

Cresfinex MK2/MK4 Cap Endcap Aluminium White

£50.54 (Incl VAT)

View Details

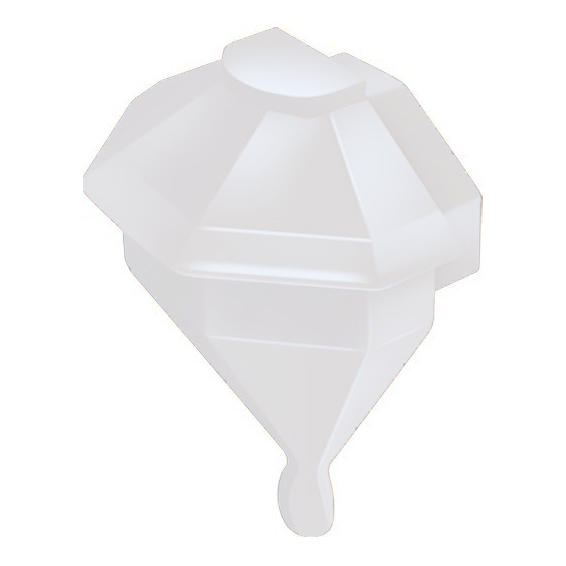

Fleur De Lys Mk2/Mk4 Aluminium Finial White (RAL9010)

Fleur De Lys Mk2/Mk4 Aluminium Finial White (RAL9010)

£107.64 (Incl VAT)

View Details

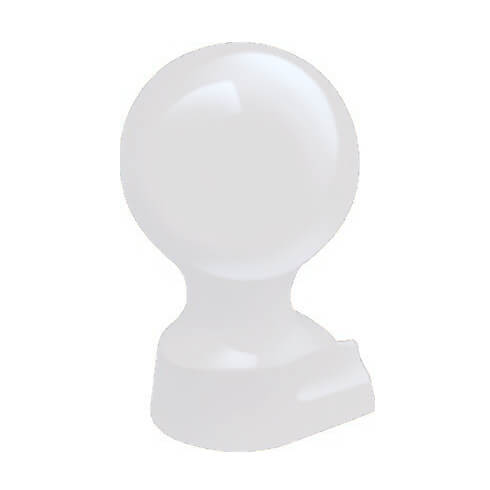

80mm Mk2/Mk4 Slide in Aluminium Ball Finial White (RAL9010)
