Integrated Dry Fix Black Ridge Kit 6m Image

Integrated Dry Fix Black Ridge Kit 6m

SKU: 54703

Brand: Timloc Building Products

(5)

Complete 6m Dry Ridge Kit: Convenient all-in-one mechanical fixing solution for secure and efficient roof ridge installations without the need for traditional mortar bedding.
Universal Roof Tile Compatibility: Suitable for use with most slate, concrete and clay roof tiles, making it a versatile choice for a wide range of roofing projects.
Round & Angled Ridge Tiles: Designed to accommodate both round and angled ridge tiles for greater flexibility across different roof designs.
Suitable for 15°–55° Roof Pitches: Compatible with most pitched roofs from 15 to 55 degrees, providing a practical dry-fix ridge solution for many property types.
New Build & Retrofit Applications: Ideal for both new roof installations and refurbishment projects, providing a reliable mechanical dry-fix alternative to traditional mortar-fixed ridge systems.

Description

6m Integrated Dry Fix Ridge Kit – Black

Complete Mortar-Free Mechanical Ridge Fixing & Ventilation System

The 6m Integrated Dry Fix Ridge Kit provides a convenient all-in-one mechanical fixing solution for installing ridge tiles without the need for traditional mortar. Designed for both new-build and retrofit roofing projects, the kit provides a secure, weather-resistant and ventilated ridge installation with everything required supplied in one pack.

Suitable for most slate, concrete and clay roof tiles, the system can be used with both round and angled ridge tiles up to 18mm thick. It is suitable for most pitched roofs between 15° and 55°, providing a versatile solution for a wide range of domestic and commercial roofing projects.

The system uses a water-resistant yet air-permeable ridge roll membrane, incorporating strong, malleable and corrosion-resistant aluminium flashing with a self-adhesive backing. This allows the roll to follow the contours of the roof tiles, helping provide effective weather protection while maintaining essential roof ventilation.

Providing 5000mm²/m of ridge ventilation, equivalent to a 5mm continuous opening, the system helps support roof-space airflow and condensation control. The 55mm wide ridge unions provide additional water-bar protection, while integrated clips securely accommodate ridge tiles up to 18mm thick.

Key Features

Complete 6m mortar-free ridge system for roof pitches from 15° to 55°
Suitable for most slate, concrete and clay tiles with round or angled ridge tiles
Provides 5000mm²/m of continuous ridge ventilation while protecting against water ingress
Mechanically fixed system helps protect against wind uplift and is independently tested to BS 8612

Unlike traditional mortar bedding, the dry-fix system isn't affected in the same way by building settlement or mortar deterioration. The mechanical installation provides a long-lasting, reliable and virtually maintenance-free ridge, while allowing installation in a wider range of wet and cold weather conditions.

The kit incorporates UV-protected, colour-fast polypropylene ridge unions, galvanised steel ridge batten straps, stainless steel screws and clamping plates, providing durable components for long-term roof performance. The system also helps prevent larger insects, birds and vermin from entering the roofline while maintaining a consistently smart finished appearance.

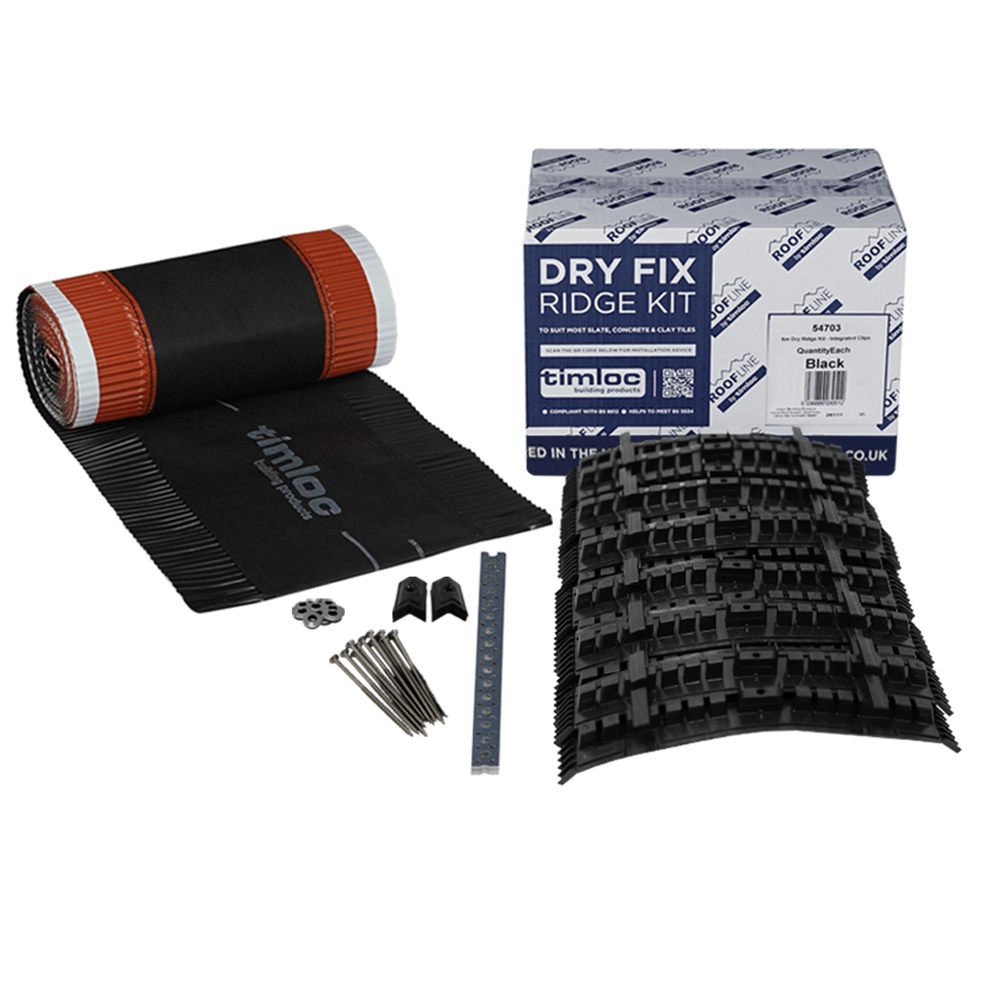

6m Integrated Ridge Kit Contents

1x 6m ventilated ridge roll with self-adhesive aluminium flashing

13x Fixing screws, washers and stainless steel clamping plates

13x Ridge unions with integrated clips

10x Universal ridge batten straps

The system helps meet the requirements of BS 5534 for slating and tiling and BS 5250 for the management of moisture and condensation in buildings, while the ridge system has been independently tested for compliance with BS 8612.

Available in Black, the 6m Integrated Dry Fix Ridge Kit provides roofers and installers with a fast, clean and practical alternative to traditional mortar-fixed ridge installations, combining secure mechanical fixing, weather protection and effective roof ventilation in one complete system.

Technical Information

Delivery: 1-2 Working Days
Lead Time: In Stock
Brand Name: Timloc
Colour: Black

Delivery & Returns

Delivery

The despatch timings we publish are estimates and due consideration needs to be made when making purchases with tight deadlines and as such we shall not be liable for any losses, costs, damages, charges, or expenses caused by any delay for delivery of the goods.

Returns Policy For Brissco Online

We appreciate that there may be occasions you may wish to return items. To help you with this process please see our returns policy below.

Returning an item – Damaged

In the event you receive damaged goods we will arrange a replacement item for you. However, it is your responsibility to notify us within 72 hours of receipt that an item has been received damaged (please see risk below).

Returning an item – Risk

On receipt of the delivery you, the customer, are responsible for those goods and any loss or damage to the goods shall be at your own risk.

Returning an item – Incorrect

If you receive incorrect goods it is your responsibility to notify us within 72 hours of receipt at which point we will make the necessary arrangements.

Delivery shortages

Firstly, our carrier delivers parcels/packages. Any shortages of them must be reported to the driver on receipt. Secondly, shortages of contents of the parcel(s)/package(s) against the enclosed Brissco advice note must be made within 72 hours.

PDFs

FAQs

1. What is a 6m Integrated Dry Fix Ridge Kit?

The 6m Integrated Dry Fix Ridge Kit is a complete mechanical fixing system for securing ridge tiles without mortar. It provides a convenient one-pack solution for creating a secure, ventilated and weather-resistant roof ridge.

2. What types of roof tiles can the Dry Fix Ridge Kit be used with?

The system is suitable for most slate, concrete and clay roof tiles and can be used with both round and angled ridge tiles.

3. What roof pitches is the ridge kit suitable for?

The Integrated Dry Fix Ridge Kit is suitable for most pitched roofs between 15° and 55°, making it a versatile option for a wide range of roofing projects.

4. How much roof ridge does one kit cover?

Each kit includes a 6 metre ridge roll, providing coverage for up to approximately 6 linear metres of roof ridge when correctly installed.

5. Does the Dry Fix Ridge Kit provide roof ventilation?

Yes. The system provides 5000mm² of ventilation per linear metre, equivalent to a 5mm continuous opening, helping ventilate the roof space and control condensation.

6. Is this ridge system completely mortar free?

Yes. The system uses mechanical fixings rather than mortar, providing a fast and clean installation that is not affected by mortar deterioration or normal building settlement.

7. How does the Dry Fix Ridge Kit protect against water ingress?

The kit uses a water-resistant yet air-permeable membrane roll with attached self-adhesive aluminium flashing. The 55mm wide ridge unions also provide additional water-bar protection while allowing the roof to remain ventilated.

8. Can the Dry Fix Ridge Kit be installed in wet or cold weather?

Yes. Because the system does not rely on mortar curing, it can be installed in virtually all wet and cold weather conditions, helping reduce weather-related delays during roofing projects.

9. What components are used to secure the ridge tiles?

The system incorporates ridge unions with integrated clips, stainless steel screws and clamping plates, galvanised steel ridge batten straps and a ventilated ridge roll. The ridge unions are compatible with ridge tiles up to 18mm thick.

10. Does the 6m Dry Fix Ridge Kit meet UK roofing standards?

Yes. The system is independently tested and complies with BS 8612. It also helps installations meet the requirements of BS 5534 for slating and tiling and BS 5250 for the control of condensation in buildings, when correctly installed as part of a suitable roofing system.

Reviews

Trevor

Professional Finish Without the Mortar

We used this 6m dry ridge kit as part of a roof refurbishment and were very pleased with the result. It provides a clean mechanical fixing for the ridge tiles and avoids the cracking and maintenance issues we'd experienced with the old mortar. The aluminium flashing was easy to shape around the tile contours and bonded down well, while the ridge unions and clips produced a secure, consistent finish along the roof. The built-in ventilation is a useful bonus too. Brissco were great to deal with throughout. They helped confirm the kit would work with our ridge tiles, had the materials ready promptly and provided excellent service. I'd happily buy the same system from them again.

Aidan

Great Kit for Our Garage Roof

Bought this kit for a new tiled garage roof and it made finishing the ridge much simpler than I expected. The instructions were straightforward and having all the main components supplied as one system meant there was no concern about buying incompatible parts separately. The ridge tiles feel very secure and the black roll is discreet once installed. I particularly liked the fact that the system provides ventilation along the ridge while still protecting against rain getting into the roof.

Guosu

Good Quality Dry Ridge System for Trade Use

We've fitted a number of dry ridge systems and this kit represents very good value. Everything required for a 6m installation is supplied together and the components feel well made. The ridge roll is flexible enough to follow the tile profile and the mechanical fixings give a solid finished installation. It's also useful having the continuous ventilation without compromising the weather protection of the ridge.

Chris

Much Better Than Re-Bedding Ridge Tiles in Mortar

Our old ridge mortar had started cracking and coming away, so we decided to replace it with a mechanical dry ridge system. This kit covered the full 6m run and was far easier to work with than mixing and bedding everything back onto mortar. The membrane follows the shape of the tiles well and the ridge tiles are held securely once everything is tightened down. Having ventilation built into the system is another big advantage.

lee

Everything Needed in One Ridge Kit

Used this 6m dry ridge kit while replacing the ridge tiles on our extension and was impressed with how complete the system is. Having the roll, unions and mechanical fixings together made the installation straightforward and there was no messing around with mortar. The ridge roll formed nicely over the roof tiles and the adhesive aluminium edges gave a secure finish. The finished ridge looks very neat and feels much more dependable than the old mortar installation.
