3-in-1 Black Over Fascia With Comb Filler Eaves Vent Protector 1m Image

3-in-1 Black Over Fascia With Comb Filler Eaves Vent Protector 1m

SKU: 3014C

Brand: Timloc Building Products

All-in-One Roof Ventilation Solution: Combines eaves protector, felt support tray, and over-fascia eaves vent into a single, efficient unit for faster installation.
Effective Roof Ventilation: Delivers airflow equivalent to a continuous 10mm vent (10,000mm² per metre), ideal for pitched roofs over 15°.
Designed for Uninhabited Roof Voids: Perfect for ventilating lofts and attic spaces, helping to reduce condensation and moisture build-up.
Flexible Installation Options: Suitable for roofs with fascia boards, and ideal where no soffit is used or a continuous soffit is required.
Optional Bird Protection: Available with or without integral eaves bird comb filler, preventing birds and debris from entering the roof space.

Description

3-in-1 Black Over Fascia With Bird Comb Filler Eaves Vent Protector – 1m

Efficient, Multi-Function Roof Ventilation in One Simple Solution

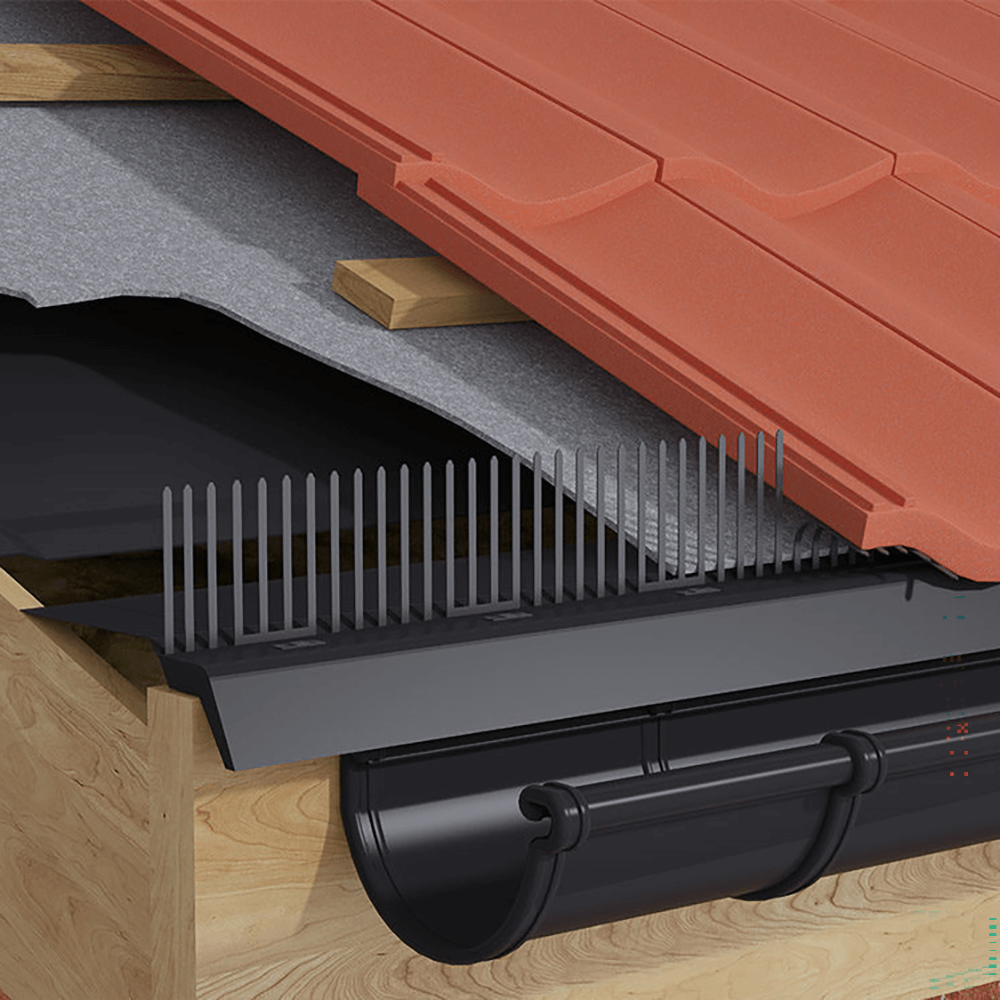

The 3-in-1 Black Over Fascia Eaves Vent Protector is a robust, primary roof ventilation system that combines three essential functions in one easy-to-install unit: over-fascia eaves ventilation, felt support (eaves protector), and eaves bird comb filler.

Supplied in 1-metre lengths, this product delivers effective, unobtrusive ventilation while providing superior structural support at the eaves—ideal for modern pitched roof construction.

Ventilation Performance

Provides ventilation equivalent to a continuous 10mm opening
10,000mm² airflow per metre run
Suitable for pitched roofs over 15°
Designed for uninhabited loft or attic spaces
Complies with BS 5250: 2021 (4mm ventilation slots)

Key Features

3-in-1 design:
- Over-fascia eaves ventilator
- Felt support / eaves protector
- Optional integral eaves bird comb filler
Superior strength construction – supports the weight of the bottom row of tiles
Durable, rot-proof, and maintenance-free
UV stabilised and colourfast
Very discreet appearance once installed
Manufactured by injection moulding in high-density polypropylene
Supplied in 1m lengths
Available in black only

Ideal Uses

Roof eaves ventilation
Roofs incorporating a fascia board
Roofs without a soffit board, or where a continuous soffit is required
Pitched roofs requiring compliant cross-flow ventilation

Installation Guidance

Fix securely into the top of the fascia board using screws or nails through the pre-formed fixing holes
Designed so roofing felt is cut back flush with the fascia, not dressed into the gutter
Ventilation must be installed along the full length of the eaves on both sides of the building to achieve effective cross-flow ventilation

Strong. Compliant. Easy to Install.

The 3-in-1 Over Fascia Eaves Vent Protector delivers reliable airflow, structural strength, and long-term durability in a single product—making it the smart, compliant choice for modern roof ventilation systems.

Technical Information

Delivery: 1-2 Working Days
Lead Time: In Stock
Weight: 1.20 Kg
Material: High Density Polypropylene
Brand Name: Timloc

Delivery & Returns

Delivery

The despatch timings we publish are estimates and due consideration needs to be made when making purchases with tight deadlines and as such we shall not be liable for any losses, costs, damages, charges, or expenses caused by any delay for delivery of the goods.

Returns Policy For Brissco Online

We appreciate that there may be occasions you may wish to return items. To help you with this process please see our returns policy below.

Returning an item – Damaged

In the event you receive damaged goods we will arrange a replacement item for you. However, it is your responsibility to notify us within 72 hours of receipt that an item has been received damaged (please see risk below).

Returning an item – Risk

On receipt of the delivery you, the customer, are responsible for those goods and any loss or damage to the goods shall be at your own risk.

Returning an item – Incorrect

If you receive incorrect goods it is your responsibility to notify us within 72 hours of receipt at which point we will make the necessary arrangements.

Delivery shortages

Firstly, our carrier delivers parcels/packages. Any shortages of them must be reported to the driver on receipt. Secondly, shortages of contents of the parcel(s)/package(s) against the enclosed Brissco advice note must be made within 72 hours.

PDFs

Eaves Vent Datasheet

FAQs

1. What is the 2-in-1 / 3-in-1 Over Fascia Eaves Vent Protector?

It is a multi-function roof ventilation system that combines an over-fascia eaves vent, felt support/eaves protector, and (on the 3-in-1 version) an integral bird comb filler into one easy-to-install product.

2. What is the difference between the 2-in-1 and 3-in-1 versions?

2-in-1: Over-fascia ventilator + felt support/eaves protector
3-in-1: Over-fascia ventilator + felt support/eaves protector + integral bird comb filler
Both versions provide the same ventilation performance.

3. How much ventilation does this product provide?

It provides ventilation equivalent to a continuous 10mm opening, delivering 10,000mm² airflow per metre run, fully compliant with BS 5250: 2021.

4. What types of roofs is it suitable for?

It is designed for pitched roofs with a pitch greater than 15°, where the roof void is an uninhabited loft or attic space.

5. Can it be used on roofs without soffit boards?

Yes. This product is ideal for roofs without soffits or where a continuous, unbroken soffit board is required for a clean appearance.

6. Does it support the roofing felt?

Yes. It acts as a felt support and eaves protector, preventing felt sagging and ensuring the roofing membrane is correctly terminated at the fascia.

7. Is it strong enough to support roof tiles?

Absolutely. The unit has superior strength construction and is designed to carry the weight of the bottom row of tiles without deformation.

8. How is the vent installed?

Each 1m length is fixed directly to the top of the fascia board using screws or nails through the pre-formed fixing holes. The roofing felt should be cut flush with the fascia, not dressed into the gutter.

9. Is the product durable and weather-resistant?

Yes. It is UV stabilised, colourfast, and totally resistant to decay, manufactured from high-density polypropylene using injection moulding.

10. Are there any key installation requirements to ensure correct ventilation?

Yes. Ventilation must be installed along the full length of the eaves on both sides of the building to create effective cross-flow ventilation, ensuring compliance and long-term roof performance.

The 2-in-1 / 3-in-1 Black Over Fascia Eaves Vent Protector offers a strong, unobtrusive, and regulation-compliant solution for modern roof ventilation, combining multiple functions into one reliable product supplied in convenient 1-metre lengths.
